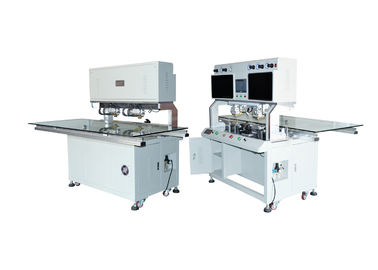

Tab FPC Acf LCD LED ACF Bonding Machine HD Digital Microscope Corrosion Resistance

Tab FPC Acf LCD LED ACF Bonding Machine HD Digital Microscope Corrosion Resistance
Tab FPC Acf LCD LED ACF Bonding Machine HD Digital Microscope Corrosion Resistance

Large Image :  Tab FPC Acf LCD LED ACF Bonding Machine HD Digital Microscope Corrosion Resistance

Product Details:

Place of Origin: China
Brand Name: CHUANGLIYOU
Certification: CE ISO
Model Number: 616DH

Payment & Shipping Terms:

Price: Negotiate
Packaging Details: Export Wooden Box Packing
Delivery Time: 3 days
Payment Terms: LC, T/T, PayPal, Western Union
Detailed Product Description
Heating Method: Pulse Heating LCD Bonding Control Way: Touch Screen + Button Operation
Weight: 450kg Type: Automatic
Product Name: ACF Lcd Bonding Machine Bonding Type: Cof/Tab Bonding
High Light:

lcd tv repair machine

,

tab bonding machine

2020 New Model Cof/Tab/FPC/Acf LCD/LED Screen Panel Bonding Machine



Product Description



It has pulse heat and constant temperature machines.

The machine may consist of HD Digital Microscope, and also has a Digital Pressure Gauge, and vacuum generator which may help to hold the panel during the pressing process.



This equipment is suitable for a variety of FPC / COF / TAB and LCD or PCB board combination bonding. It is a professional high precision repair equipment for reparing 2K, 4K and curved screen different sizes of LCD screen cable damage or natural fall off.



Features

  • Good contact resistance for reliability
  • Good corrosion resistance
  • Excellent chemical resistance
  • Good for wide bonding temperature range
  • Replaces solder for lead-free solution



Model number 616DH
Heating Mode Pulse
PID Temperature Control System Brand Siemens temperature control module
Temperature curve:Factory Reset
Peak temperature + / - 0.3 degrees Celsius
From room temperature to 180 degrees response time for 2 seconds
Brand:the United State OMEAG
Heat Press Head Materials: titanium alloy
Place of origin: the United States
Plane precision (hot-pressing side) : 0.005 mm
Industrial Control Unit PLCS:DELTA
HDMI:Weinview
Imaging Unit COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)
PCB counterpoint: no
Microscope magnification: 20 ~ 100 consecutive times
Number of lens: 2
COF counterpoint display: 19 inch
PCB counterpoint display:no
Light above:yes
Light down:no
COF Trimming Unit Place of origin: Taiwan
Type of guide rail:V guide rail
Accuracy: 0.01
Adjustable direction: X/Y/R
X-y range: + / - 6.5mm
R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees
COF Fixture Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended
Lens Fine-Tuning Unit Type of guide rail: precise cross rail .
Control mode: X - Y - Z micrometer control
Position Detection NO
Silicone Skin/Teflon Change position manually
LCD Drive (Platform) Sliding or fixed optional manually
Alarm Abnormal:temperature/thermocouple anomaly/actions
Heat Seal Head Counterpoint Independent pneumatic,Pressure reducing valve be adjusted manually
Control Way Touch screen + button operation
Parameter Setting According to the need to set to storage more groups of hot-pressing parameters
Voltage AC220 v
Peak Power 1500W
Weight 450kg
Size Of Machine (mm) 1800(L)X1200(W)X1520(H)mm



Tab FPC Acf LCD LED ACF Bonding Machine HD Digital Microscope Corrosion Resistance 0


About us


Guangzhou Chuangliyou Machinery Equipment Co., Ltd.

Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is located in Dashi, Panyu District, Guangzhou City, where is a prosperous commercial city. It is located in the central area of Dashi Industry, adjacent to the most perfect LCD electronic procurement and wholesale market in China. Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is specialized in the research and development, design, production and sales of various pneumatic hot press equipment. Large-scale enterprises as a whole.





What's the payment and delivery time?


1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
