|Feature:||High Machine Capacity||Heating Type:||Pulse|
|Heating Method:||Pulse Heating LCD Bonding||Repair:||LCD, LED, TV, Laptop Screen|
|Control Way:||Touch Screen + Button Operation||Bonding Type:||Cof/Tab Bonding|
acf bonding equipment,
tab bonding machine

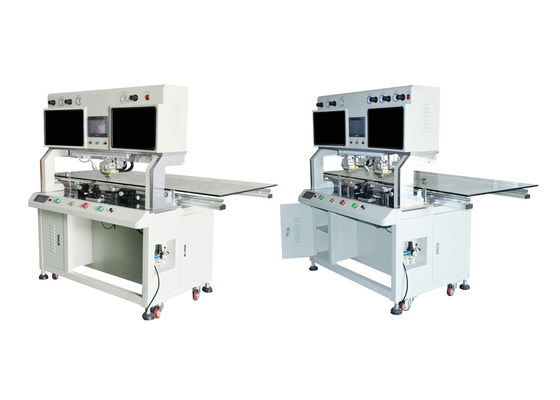

12~ 85 Inch Acf/ FPC/Cof/Fog/Tab LCD/LED TV Panel Repair Bonding Machines
LCD/LED TV Panel Repair Bonding Machines (Pulsed hot pressing machine) is by hot pressing head loading pulse voltage, hot head heating , will be connected to the object, when the temperature rises to solder melting point after (i.e., after the rise to the predetermined temperature), will be connected to the tin melting between the objects and put it together.Applied to mobile phone manufacturer, touch screen manufacturers, such as computer, printer manufacturers, production technology applied in the following products: USB wire welding, soft wire FFC flexible PCB FPC or rigid circuit board PCB welding, TCP and circuit board PCB or PCB FPC welding between soft,welding?flexible circuit board FPC between circuit board PCB , etc.
1. Repair any inches below 100 inches.
2. Refurbish black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, caused by FPC/TAB/COF.
3. Pulse heating precision+/-0.3ºC
4. From room temperature to 180 degrees response time for 2 seconds
5. Plane precision (hot-pressing side) : 0.005 mm
6. low repair rate, and easy to operate.
|PID Temperature Control System Brand||Siemens temperature control module|
|Temperature curve:Factory Reset|
|Peak temperature + / - 0.3 degrees Celsius|
|From room temperature to 180 degrees response time for 2 seconds|
|Brand:the United State OMEAG|
|Heat Press Head||Materials: titanium alloy|
|Place of origin: the United States|
|Plane precision (hot-pressing side) : 0.005 mm|
|Industrial Control Unit||PLCS:DELTA|
|Imaging Unit||COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)|
|PCB counterpoint: no|
|Microscope magnification: 20 ~ 100 consecutive times|
|Number of lens: 2|
|COF counterpoint display: 19 inch|
|PCB counterpoint display:no|
|COF Trimming Unit||Place of origin: Taiwan|
|Type of guide rail:V guide rail|
|Adjustable direction: X/Y/R|
|X-y range: + / - 6.5mm|
|R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees|
|COF Fixture||Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended|
|Lens Fine-Tuning Unit||Type of guide rail: precise cross rail .|
|Control mode: X - Y - Z micrometer control|
|Silicone Skin/Teflon||Change position manually|
|LCD Drive (Platform)||Sliding or fixed optional manually|
|Heat Seal Head Counterpoint||Independent pneumatic,Pressure reducing valve be adjusted manually|
|Control Way||Touch screen + button operation|
|Parameter Setting||According to the need to set to storage more groups of hot-pressing parameters|
|Size Of Machine (mm)||1800(L)X1200(W)X1520(H)mm|
