|Product Name:||LCD Laser Repair Machine||Laser Power:||3-8 Mj/Pulse|
|Working Environment Temperature:||20 ºC~30 ºC + / - 5 ºC||Laser System:||VD Control System|
|Repair Type:||Color Lines And Bright Spot||Cooling Method:||Water-cooled/air-cooled|
|Repair Size:||12-65 Inch||Vibration Frequency:||1 ~ 20 Hz/seconds|

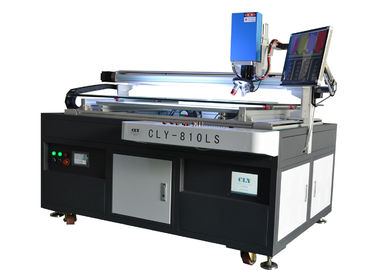

LCD/LED TV Panel Laser Repair Machine Hot Price Cly-810ls 4K TV Screen Laser Repair Machine
Laser machine, the purpose of repair is further hope to be able to correct the defective part, make originally filtered to throw away waste products, to patch the acceptable products. At the current acceptable product standards, the first is absolutely no color line defect; Second, at present many products have highlight the "no spot guarantees", therefore cannot have a pixel is always shine bright spot, but it can be a way to accept a few dark spots. So the object of laser repairing, mainly on color line defect and bright spot.
For maximum 65 inch LCD panel screen size.
Point (3 um X 3 um), line (50 um long X 3 um), block (50 um X 50 um) repair
To repair the mist of polarizing film containing the LCD panel
Dual display electronic brake light red and red box
Light gate size and the parameters of the lens ratio and laser power storage and use
Working power supply: 220 v, 30 a
|Type||LCD screen Laser repairing machine|
|Power supply||voltage 220V|
|Exterior size||2320 mm * 2160 mm * 2000 mm (the actual design shall prevail)|
|Working environment temperature||20 ºC~30 ºC + / - 5 ºC|
|Work environment relative humidity||65 + / - 5% RH|
|Laser system||VD control system|
|LASER types||ND YAG LASER|
|Wave length||1064/532 nm double wavelength (532 nm for adjust the optical wavelength)|
|laser power||3-8 mj/Pulse|
|Vibration frequency||1 ~ 20 Hz/seconds|
|The maximum peak power||1mW|
|1064 wave amplitude||8 ~ 6 nsec|
|Output power control||512 steps for 0-100% Hi/Low switch - able|
|Flash Lamp Life Time||1year or greater than 1000000 shots|
|Laser oscillator warranty period||1 year|
|Interface||RS - 232|
|Other name||Laser machine|
|The actual laser configuration specifications shall prevail|
Working range 905 mm X 1535 mm X 50 mm(XYZ axis)
Moving range of XY axis 907 mm X1538 mmZ-axis moving range 51mm
Operation mode XY axis manual and Z axismanual
Electrical performance specification
Input power supply AC single-phase 220V,50-60Hz, 25A
Gas pressure 0.4 MPa
Maintenance of the whole machine for oneyear (excluding consumable parts)
The laser repairing ways
Welding: in a second metal overlapping across, use the appropriate energy and wavelength of laser, melt the metal parts and welding together, connecting the two electrode which was not connected (and to realize disconnection by cut off ) to realize repairing.
LCD screen laser repair machine (hereinafter referred to as laser machine), in the LCD screen maintenance industry is at high-end technology of repairing, is the most high-end technology. In the LCD screen repair area except COF losing welding, TAB burnt (the fault with can be repaired by bonding machine) other such as bright line, half line, point, line, coarse, multi-line can use laser machine to repair. Laser machine in the LCD screen repair process has high efficiency, high repair rate, low cost (the same fault in the laser machine does not need to replace parts, not only save cost but also improve repair rate not influenced by lack accessories) etc, and widely used by large production factory, brand after-sales and maintenance of the company as a main screen equipment.
Processing load and X/Y/Z axis driving system
Size 1250 mm X 900 mm work platform
Load material precision grinding optical glass platform.
Mount base confidential steel base
X, Y effective stroke 1250 mm X 900 mm
X, Y axis drive form with servo motor system confidential screw
X, Y minimum resolution of 1 um/pulse
Less than or equal to 5 um reproducibility
Z axis range of 100 mm
The Z axis driver form with servo motor system confidential screw
The Z axis minimum resolution 0.1 um/pulse
Will be subject to the actual design configuration.
Optical imaging system
Microscope: observation/laser processing and special
The CCD: 1/2 "color CCD
Fall shoot the light source, high brightness halogen light source system: (100 w)
Transmission light source, high brightness halogen light source system: (150 w)
Guide Light high brightness halogen Light source system: (100 w)
Objective switching system: 4 hole/electric switch mode (linear)
Precision optical lens group: 5x, 10x, 20x, 50x (the latter two have observed/laser processing function).
