Detailed Product Description
Product Name: LCD Laser Repair Machine Model NO: CLY-810LS
Machine Weight: 1200kg Repair: LCD, LED, TV, Laptop Screen
Laser Power: 3-8 Mj/Pulse Cooling Method: Water-cooled/air-cooled
Laser System: VD Control System

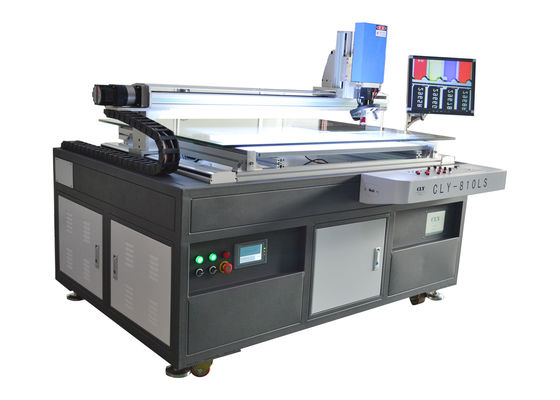

CLY-810LS TV Panel Vertical Line LCD Laser Repair Machine



Product Description



LCD screen laser repair machine (hereinafter referred to as laser machine), in the LCD screen maintenance industry is at high-end technology of repairing, is the most high-end technology. In the LCD screen repair area except COF losing welding, TAB burnt (the fault with can be repaired by bonding machine) other such as bright line, half line, point, line, coarse, multi-line can use laser machine to repair.



The laser repairing ways


Welding: in a second metal overlapping across, use the appropriate energy and wavelength of laser, melt the metal parts and welding together, connecting the two electrode which was not connected (and to realize disconnection by cut off ) to realize repairing.



Equipment parameters



Type LCD screen Laser repairing machine
Power supply voltage 220V
Exterior size 2320 mm * 2160 mm * 2000 mm (the actual design shall prevail)
Machine weight 1200kg
Working environment temperature 20 ºC~30 ºC + / - 5 ºC
Work environment relative humidity 65 + / - 5% RH
Laser system VD control system
LASER types ND YAG LASER
Wave length 1064/532 nm double wavelength (532 nm for adjust the optical wavelength)
cooling method Water-cooled/air-cooled
laser power 3-8 mj/Pulse
Vibration frequency 1 ~ 20 Hz/seconds
The maximum peak power 1mW
1064 wave amplitude 8 ~ 6 nsec
Output power control 512 steps for 0-100% Hi/Low switch - able
Flash Lamp Life Time 1year or greater than 1000000 shots
Laser oscillator warranty period 1 year
Interface RS - 232
Other name Laser machine
The actual laser configuration specifications shall prevail



For maximum 65 inch LCD panel screen size.
Point (3 um X 3 um), line (50 um long X 3 um), block (50 um X 50 um) repair
To repair the mist of polarizing film containing the LCD panel

Dual display electronic brake light red and red box
Light gate size and the parameters of the lens ratio and laser power storage and use
Working power supply: 220 v, 30 a



Mount base confidential steel base


X, Y effective stroke 1250 mm X 900 mm
X, Y axis drive form with servo motor system confidential screw
X, Y minimum resolution of 1 um/pulse
Less than or equal to 5 um reproducibility
Z axis range of 100 mm
The Z axis driver form with servo motor system confidential screw
The Z axis minimum resolution 0.1 um/pulse
Will be subject to the actual design configuration.

Optical imaging system


Microscope: observation/laser processing and special
The CCD: 1/2 "color CCD
Fall shoot the light source, high brightness halogen light source system: (100 w)
Transmission light source, high brightness halogen light source system: (150 w)
Guide Light high brightness halogen Light source system: (100 w)
Objective switching system: 4 hole/electric switch mode (linear)
Precision optical lens group: 5x, 10x, 20x, 50x (the latter two have observed/laser processing function).



CLY-810LS TV Panel Vertical Line LCD Laser Repair Machine Laser Power 3-8 Mj / Pulse



About us


Guangzhou Chuangliyou Machinery Equipment Co., Ltd.



Guangzhou Chuang Li You Machinery Equipment Technology Co., Ltd has devoted for many years to professional design, production, sales and technical teaching in the field of machine for LCD screen repair.

As an automation equipment hightech enterprise, the company holds the development concept "quality first, independent innovation, excellent practical" since its establishment. We explore the precise, practical, convenient and quick production process, and put forward concrete solving plans about professional production equipment and the overall equipment in LCD field for customers.

Our products include a series of FOG/COF/TAB heat press machines, bonding machines, which are applied to manufacturers of LCD panel and home appliance maintenance industry. Moreover, we maintain online support forum to assist any help to customer and provide customers with accessories, consumables and one-stop service.
