| Model NO.: | 610dh | Use LCD Screen Repair: | Tab Bonding |
|---|---|---|---|
| Hot Pressing Time: | Can Be Set (S) | Peak Temperature: | + / - 0.3 Degrees Celsius |
| Machine Shape Size: | 1800(L)X1200(W)X1520(H)mm | Other Name: | LCD Repair Bonding Machine |
| Peak Power: | 1200W | Work Pressure: | 0.3~0.4 (MPa) |
| High Light: | chip bonding machine,screen repair machine |
||

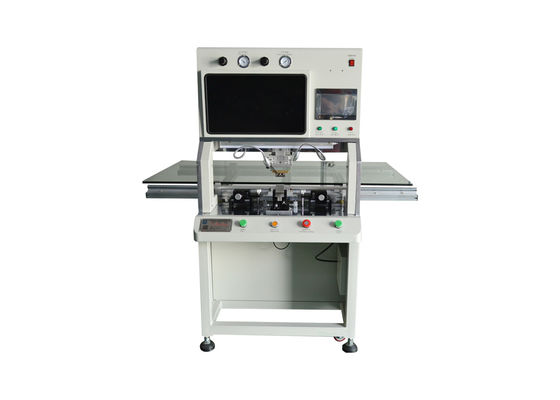

LCD TV Repair Machine 610dh Cof Bonding Machine for LCD Flex Cable Repair Machine
Product Description
This equipment is suitable for all kinds of FPC, COF, TAB and LCD and PCB combi-nation bonding. It is a kind of high-precision repair equipment specially used for re-pairing LCD screen with various sizes when the wiring is damaged or falling off natu-rally. 2K screen and 4K screen can be repaired and repaired.
| Model NO. | 610DH | Use LCD Screen Repair | Tab Bonding |
| Other Name | LCD Repair Bonding Machine | Peak Power | 1200W |
| Voltage | AC220V | Hot Pressing Time | Can Be Set (S) |
| Work Pressure | 0.3~0.4 (MPa) | Machine Shape Size | 1500(L)X1200(W)X1520(H)mm |
| Peak Temperature | + / - 0.3 Degrees Celsius | Weight | 450kg |
Features
Single Head Manual platform Automatic Pressure Machine Specification
| Model number | 610DH |
| Heating Mode | Pulse |
| PID Temperature Control System Brand | Siemens temperature control module |
| Temperature curve:Factory Reset | |
| Peak temperature + / - 0.3 degrees Celsius | |
| From room temperature to 180 degrees response time for 2 seconds | |
| Brand:the United State OMEAG | |
| Heat Press Head | Materials: titanium alloy |
| Place of origin: the United States | |
| Plane precision (hot-pressing side) : 0.005 mm | |
| Industrial Control Unit | PLCS:DELTA |
| HDMI:Weinview | |
| Imaging Unit | COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package) |
| PCB counterpoint: no | |
| Microscope magnification: 20 ~ 100 consecutive times | |
| Number of lens: 2 | |
| COF counterpoint display: 19 inch | |
| PCB counterpoint display:no | |
| Light above:yes | |
| Light down:no | |
| COF Trimming Unit | Place of origin: Taiwan |
| Type of guide rail:V guide rail | |
| Accuracy: 0.01 | |
| Adjustable direction: X/Y/R | |
| X-y range: + / - 6.5mm | |
| R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees | |
| COF Fixture | Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended |
| Lens Fine-Tuning Unit | Type of guide rail: precise cross rail . |
| Control mode: X - Y - Z micrometer control | |
| Position Detection | NO |
| Silicone Skin/Teflon | Change position manually |
| LCD Drive (Platform) | Sliding or fixed optional manually |
| Alarm | Abnormal:temperature/thermocouple anomaly/actions |
| Heat Seal Head Counterpoint | Independent pneumatic,Pressure reducing valve be adjusted manually |
| Control Way | Touch screen + button operation |
| Parameter Setting | According to the need to set to storage more groups of hot-pressing parameters |
| Voltage | AC220 v |
| Peak Power | 1200W |
| Weight | 450kg |
| Size Of Machine (mm) | 1200(L)X1200(W)X1520(H)mm |
About us
Guangzhou Chuangliyou Machinery Equipment Co., Ltd.
Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is located in Dashi, Panyu District, Guangzhou City, where is a prosperous commercial city. It is located in the central area of Dashi Industry, adjacent to the most perfect LCD electronic procurement and wholesale market in China. Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is specialized in the research and development, design, production and sales of various pneumatic hot press equipment. Large-scale enterprises as a whole.
What's the payment and delivery time?
1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
