Tab Cof Acf LCD OLED LED TV Bonding Machine Titanium Alloy Bonding Head Easy Operation

Tab Cof Acf LCD OLED LED TV Bonding Machine Titanium Alloy Bonding Head Easy Operation
Tab Cof Acf LCD OLED LED TV Bonding Machine Titanium Alloy Bonding Head Easy Operation

Large Image :  Tab Cof Acf LCD OLED LED TV Bonding Machine Titanium Alloy Bonding Head Easy Operation

Product Details:

Place of Origin: China
Brand Name: CHUANGLIYOU
Certification: CE ISO
Model Number: 618SH

Payment & Shipping Terms:

Price: Negotiate
Packaging Details: Export Wooden Box Packing
Delivery Time: 3 days
Payment Terms: LC, T/T, PayPal, Western Union
Detailed Product Description
Heating Method: Pulse Heating LCD Bonding Product Name: ACF Lcd Bonding Machine
Repair: LCD, LED, TV, Laptop Screen Heating Type: Pulse
Feature: Easy To Operate Voltage: AC220 V
High Light:

bonding machine for led tv

,

lcd cof bonding machine

618SH Professional Double Head Big Size LCD Repair Machine for FPC Fog Cof Tab Cog

Product Description
LCD Bonding Machine is designed for LCD/LED TV repair, which can solve the problem of ACF/COF/TAB fault, the function of MD-880SH is replacing, bonding, re-bonding COF/TAB on LCD glass and PCB .

Features


  • Bonding ACF and FPC/COF/FOG/TAB to LCD (TFT, IPS).
  • Control by PLC, pulse heating method.
  • Touch screen operation, multiple bonding parameters can be set.
  • FPC/COF/FOG/TAB hot bar process.
  • Dual HD lens + Double large screen display
  • Imported titanium alloy bonding head
  • Precision micrometer TAB base
  • Plane precision (hot-pressing side) : 0.005 mm
  • Control Way Touch screen + button operation
  • Robust design
  • Easy operation

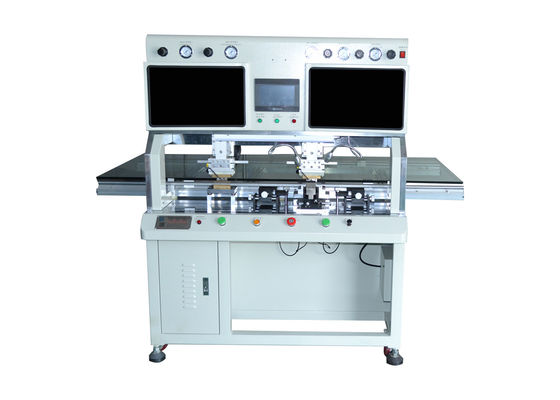

Tab Cof Acf LCD OLED LED TV Bonding Machine Titanium Alloy Bonding Head Easy Operation 0


Model number618SH
Heating ModePulse
PID Temperature Control System BrandSiemens temperature control module
Temperature curve:Factory Reset
Peak temperature + / - 0.3 degrees Celsius
From room temperature to 180 degrees response time for 2 seconds
Brand:the United State OMEAG
Heat Press HeadMaterials: titanium alloy
Place of origin: the United States
Plane precision (hot-pressing side) : 0.005 mm
Industrial Control UnitPLCS:DELTA
HDMI:Weinview
Imaging UnitCOF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)
PCB counterpoint: no
Microscope magnification: 20 ~ 100 consecutive times
Number of lens: 2
COF counterpoint display: 19 inch
PCB counterpoint display:no
Light above:yes
Light down:no
COF Trimming UnitPlace of origin: Taiwan
Type of guide rail:V guide rail
Accuracy: 0.01
Adjustable direction: X/Y/R
X-y range: + / - 6.5mm
R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees
COF FixtureMechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended
Lens Fine-Tuning UnitType of guide rail: precise cross rail .
Control mode: X - Y - Z micrometer control
Position DetectionNO
Silicone Skin/TeflonChange position manually
LCD Drive (Platform)Sliding or fixed optional manually
AlarmAbnormal:temperature/thermocouple anomaly/actions
Heat Seal Head CounterpointIndependent pneumatic,Pressure reducing valve be adjusted manually
Control WayTouch screen + button operation
Parameter SettingAccording to the need to set to storage more groups of hot-pressing parameters
VoltageAC220 v
Peak Power1500W
Weight450kg
Size Of Machine (mm)1800(L)X1200(W)X1520(H)mm




About us


Guangzhou Chuangliyou Machinery Equipment Co., Ltd.



Guangzhou Chuang Li You Machinery Equipment Technology Co., Ltd has devoted for many years to professional design, production, sales and technical teaching in the field of machine for LCD screen repair.
As an automation equipment hightech enterprise, the company holds the development concept "quality first, independent innovation, excellent practical" since its establishment. We explore the precise, practical, convenient and quick production process, and put forward concrete solving plans about professional production equipment and the overall equipment in LCD field for customers.
Our products include a series of FOG/COF/TAB heat press machines, bonding machines, which are applied to manufacturers of LCD panel and home appliance maintenance industry. Moreover, we maintain online support forum to assist any help to customer and provide customers with accessories, consumables and one-stop service.



What's the payment and delivery time?


1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
