Product Details:
Payment & Shipping Terms:
|
Repair: | LCD, LED, TV, Laptop Screen | Other Name: | Touch Lcd Bonding Machine |
---|---|---|---|
Voltage: | AC220 V | Peak Power: | 1500W |
Weight: | 450kg | Feature: | Easy To Operate |
Work Pressure: | 0.3~0.4 (MPa) | Applicable LCD Panel Thickness: | 0.3MM-1.1MM[Single Glass] |

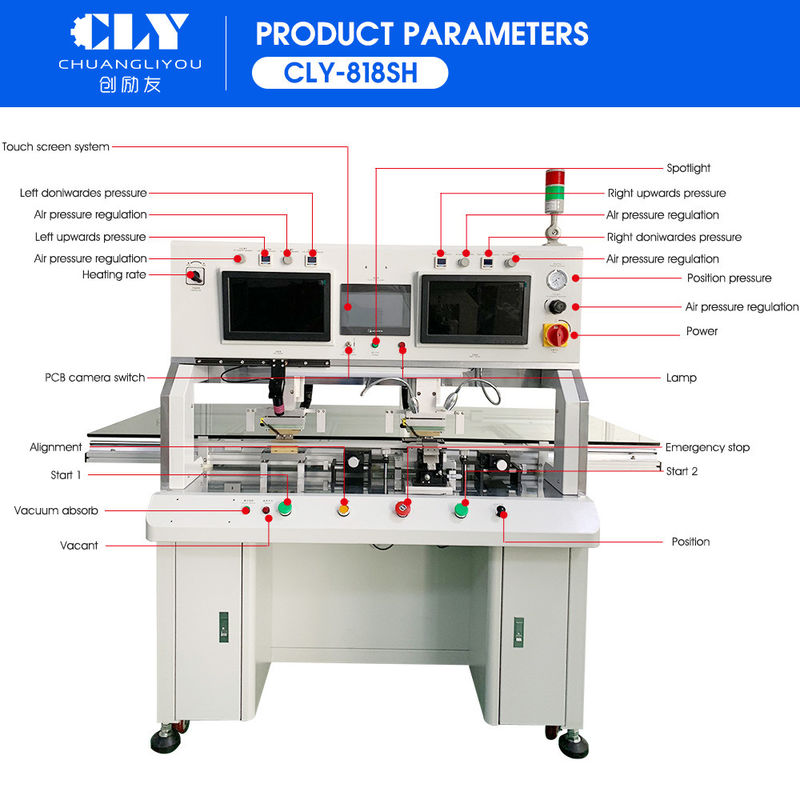

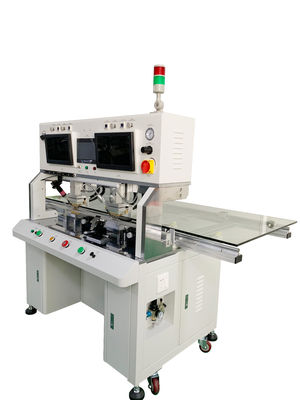

818SH LED LCD TV Acf Cof Bonding Machine for Samsung Sony LG
Product Description
Model: | CLY-818SH |
Product Name: | 100 Inch TV LCD Repair Single station Pulse Heating COF/FOG Bonding machine |
Suitable For: | Suitable for FPC/COF Contraposition bonded to LCD which attached ACF,Used for COF repair |
Size Range: | 7-100inch |
Bonding Precision: | X±0.01MM ,Y±0.01MM |
Machine Capacity: | 22S/Pcs,2500pcs/day |
Indenter Qty: | 1PCS |
Power Supply: | 220V±10%,50HZ,1500W |
Air Supply: | 0.3~0.5MPa,dry air |
Platform Precision: | ±0.01MM |
Pressure Head Size: | 50*1.2MM (customizable) |
Temp Range: | RT~400℃ |
Time Range: | 1~99.9sec |
Product Size: | W1800*850*H1520MM |
N.W: | About 480kg |
Features
The equipment is suitable for variety of FPC / COF / TAB and LCD or PCB board combination bonding. It is a professional high precision repair equipment for repairing 2K, 4K ,8K, and curved screen different sizes of LCD screen cable damage or natural fell off. It can repair TV lcd panel and computer panel both.
About us
Guangzhou Chuangliyou Machinery Equipment Co., Ltd.
Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is located in Dashi, Panyu District, Guangzhou City, where is a prosperous commercial city. It is located in the central area of Dashi Industry, adjacent to the most perfect LCD electronic procurement and wholesale market in China. Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is specialized in the research and development, design, production and sales of various pneumatic hot press equipment. Large-scale enterprises as a whole.
Our Service:
1. Your inquiry will be replied in 24 hours.
2. Offer free spare parts and service within one year of warranty,
3. Technology Support Provide Demo operation video for training;
4. Professional after-sales service team;
5. Give great discount to AGENCY to ensure agents profit.
What's the payment and delivery time?
1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
6. How can I install the machine after I received?
Here is a video of 616DH disassembly procedure. You can refer to it and do the opposite procedure.
