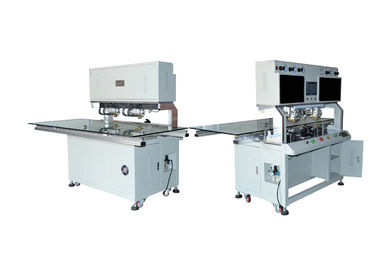

616DH 7~100inch Pulse Heating COF ACF TV lcd repair machine TAB bonding machine
Product Description
Double head ,double pneumatic devices, dual temperature control,high success rate for new high density and high resolution LCD panels,after bonding the quality of the products is stable. The PLC control system let the equipment stable and reliable .
Main technical
1. Save multiplegroups profiles according to the need,set and modify the temperature parameter on the touch screen at any time.
2. Multifunction and humanized operation use interfacel human-machine high definition interface,PLC control.
Quick Details
Condition:New
Place of Origin:Guangdong, China (Mainland)
Brand Name:Chuang Li You
Model Number:616DH
Voltage:AC220V/50Hz
Power(W):1500W
Weight:450kg
Dimension(L*W*H):1800*1200*1520mm
Warranty:1 Year
After-sales Service Provided:Have overseas service provided
Name:7~100inch COF ACF TV lcd repair machine TAB bonding machine
Power:1500W
Suitable for:Suitable for FPC/COF Contraposition bonded to LCD
Size Range:7~100 inch
Machine Capacity:22S/Pcs,2500pcs/day
Heating System:Pulse Heating System
Control System:DELTA PLC Control system
| Model number |
616DH |
| Heating Mode |
Pulse |
| PID Temperature Control System Brand |
Siemens temperature control module |
| Temperature curve:Factory Reset |
| Peak temperature + / - 0.3 degrees Celsius |
| From room temperature to 180 degrees response time for 2 seconds |
| Brand:the United State OMEAG |
| Heat Press Head |
Materials: titanium alloy |
| Place of origin: the United States |
| Plane precision (hot-pressing side) : 0.005 mm |
| Industrial Control Unit |
PLCS:DELTA |
| HDMI:Weinview |
| Imaging Unit |
COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package) |
| PCB counterpoint: no |
| Microscope magnification: 20 ~ 100 consecutive times |
| Number of lens: 2 |
| COF counterpoint display: 19 inch |
| PCB counterpoint display:no |
| Light above:yes |
| Light down:no |
| COF Trimming Unit |
Place of origin: Taiwan |
| Type of guide rail:V guide rail |
| Accuracy: 0.01 |
| Adjustable direction: X/Y/R |
| X-y range: + / - 6.5mm |
| R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees |
| COF Fixture |
Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended |
| Lens Fine-Tuning Unit |
Type of guide rail: precise cross rail . |
| Control mode: X - Y - Z micrometer control |
| Position Detection |
NO |
| Silicone Skin/Teflon |
Change position manually |
| LCD Drive (Platform) |
Sliding or fixed optional manually |
| Alarm |
Abnormal:temperature/thermocouple anomaly/actions |
| Heat Seal Head Counterpoint |
Independent pneumatic,Pressure reducing valve be adjusted manually |
| Control Way |
Touch screen + button operation |
| Parameter Setting |
According to the need to set to storage more groups of hot-pressing parameters |
| Voltage |
AC220 v |
| Peak Power |
1500W |
| Weight |
450kg |
| Size Of Machine (mm) |
1800(L)X1200(W)X1520(H)mm |
