Product Details:
Payment & Shipping Terms:
|
| Heating Method: | Pulse Heating LCD Bonding | Product Name: | ACF Lcd Bonding Machine |
|---|---|---|---|
| Heating Type: | Pulse | Control Way: | Touch Screen + Button Operation |
| Type: | Automatic | Bonding Type: | Cof/Tab Bonding |
| High Light: | cof ic bonding machine,lcd flex cable repair machine |
||

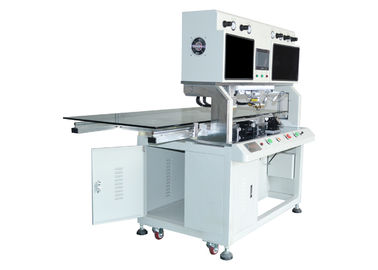

Acf / Cof Bonding Machine Pulse Hot Press Equipment to Repair LCD TV Screen
What LCD Panel Problems our TAB Bonding Machine can solve out? you will find answers in the below:
Screen failure: Vertical, horizontal, vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, black screen, white show, horizontal, vertical half and half, fault, and so on., display is not complete, low brightness, normal after a period of time display screen or white flowers, weak problems such as the equipment for repair are
available.
Features
1 - Dual HD lens + Double large screen display
HD electron microscope acquisition is clearer,Large screen displaylooks more carefully
2 - imported titanium alloy bonding head
High-tech aviation materials, fast heat conduction, uniform force, more stable hot pressing, no deformation
3 - precision micrometer TAB base
Three-axis micrometer adjustment, TAB alignment moreprecise, stainless steel seamless fixture is easier to use
| Model number | 618SH |
| Heating Mode | Pulse |
| PID Temperature Control System Brand | Siemens temperature control module |
| Temperature curve:Factory Reset | |
| Peak temperature + / - 0.3 degrees Celsius | |
| From room temperature to 180 degrees response time for 2 seconds | |
| Brand:the United State OMEAG | |
| Heat Press Head | Materials: titanium alloy |
| Place of origin: the United States | |
| Plane precision (hot-pressing side) : 0.005 mm | |
| Industrial Control Unit | PLCS:DELTA |
| HDMI:Weinview | |
| Imaging Unit | COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package) |
| PCB counterpoint: no | |
| Microscope magnification: 20 ~ 100 consecutive times | |
| Number of lens: 2 | |
| COF counterpoint display: 19 inch | |
| PCB counterpoint display:no | |
| Light above:yes | |
| Light down:no | |
| COF Trimming Unit | Place of origin: Taiwan |
| Type of guide rail:V guide rail | |
| Accuracy: 0.01 | |
| Adjustable direction: X/Y/R | |
| X-y range: + / - 6.5mm | |
| R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees | |
| COF Fixture | Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended |
| Lens Fine-Tuning Unit | Type of guide rail: precise cross rail . |
| Control mode: X - Y - Z micrometer control | |
| Position Detection | NO |
| Silicone Skin/Teflon | Change position manually |
| LCD Drive (Platform) | Sliding or fixed optional manually |
| Alarm | Abnormal:temperature/thermocouple anomaly/actions |
| Heat Seal Head Counterpoint | Independent pneumatic,Pressure reducing valve be adjusted manually |
| Control Way | Touch screen + button operation |
| Parameter Setting | According to the need to set to storage more groups of hot-pressing parameters |
| Voltage | AC220 v |
| Peak Power | 1500W |
| Weight | 450kg |
| Size Of Machine (mm) | 1800(L)X1200(W)X1520(H)mm |
About us
Guangzhou Chuangliyou Machinery Equipment Co., Ltd.
Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is located in Dashi, Panyu District, Guangzhou City, where is a prosperous commercial city. It is located in the central area of Dashi Industry, adjacent to the most perfect LCD electronic procurement and wholesale market in China. Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is specialized in the research and development, design, production and sales of various pneumatic hot press equipment. Large-scale enterprises as a whole.
What's the payment and delivery time?
1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
