|Product Name:||LCD Bonding Machine||Control Way:||Touch Screen + Button Operation|
|Type:||Automatic||Feature:||Easy To Operate|
|Voltage:||AC220 V||Bonding Type:||Cof/Tab Bonding|
lcd panel repair machine,
heat bonding machine

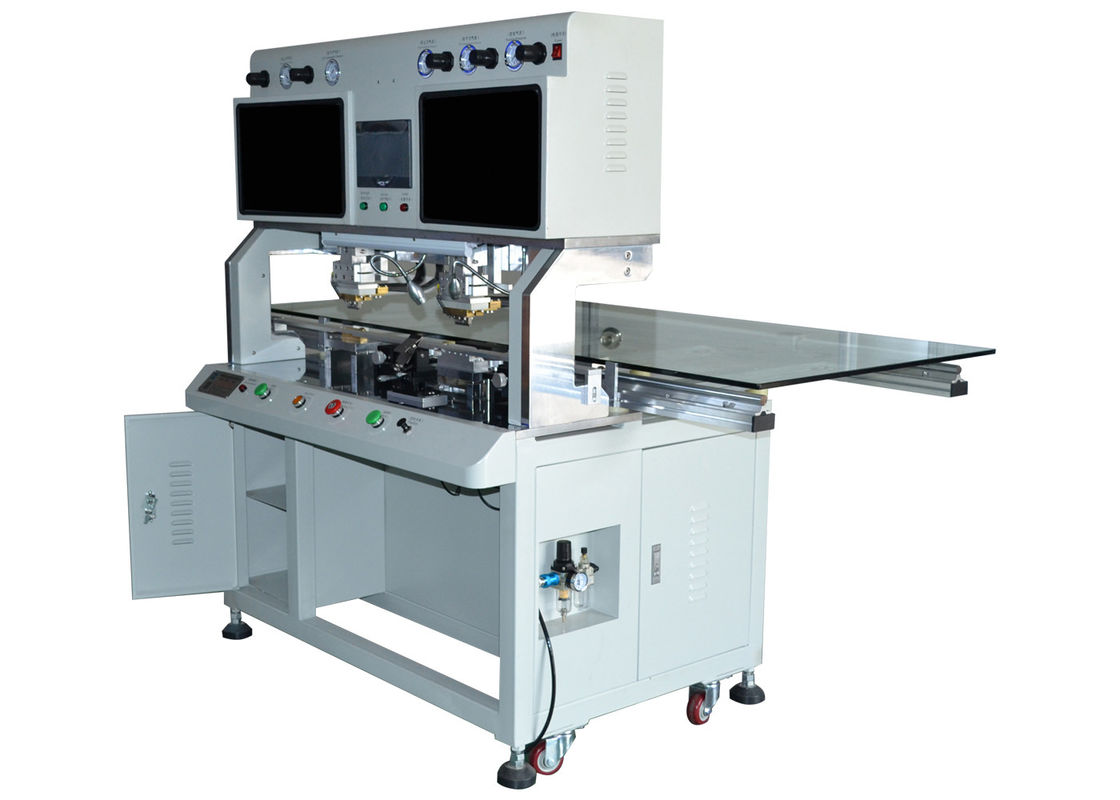

618SH High Precision Flex Cable Acf Bonding LCD Repair Machine
Heating method: pulse heating mode
Fast heating/cooling and auxiliary cooling function. High quality titanium alloy head, automatic temperature compensation function, make the temperature more accurately.
High precision counterpoint: micrometer counterpoint
Equipped with advanced optical alignment system, fully satisfy the product clear counterpoint and production of precision, para X, Y, Z axis adjustment adopts high-precision micrometer regulator, slippery course synchronous operation, ensure that para a higher precision.19 inches large screen display contrapuntal line electrode, makes the registration faster, more generous appearance.
The stability control is: Panasonic - TC2
Imported temperature sensing line and Panasonic's newest chips (TC2) make more accurate temperature control, with fast heating time, temperature precision higher characteristic, and add heating curves and parameters of synchronous display.
The operating interface is: WV full-color PDA (single communication)
6.5 -inch intelligent man-machine interface, programmable controller (PLC) control system, make the equipment operation is stable and reliable.
|Model NO.||618SH||Use LCD Screen Repair||Tab Bonding|
|Other Name||LCD Repair Bonding Machine||Peak Power||1500W|
|Voltage||AC220V||Hot Pressing Time||Can Be Set (S)|
|Work Pressure||0.3~0.4 (MPa)||Machine Shape Size||1800(L)X1200(W)X1520(H)mm|
|Peak Temperature||+ / - 0.3 Degrees Celsius||Weight||450kg|
