|Product Name:||Tab Cof Bonding Machine||Heating Type:||Pulse|
|Feature:||High Machine Capacity||Repair:||LCD, LED, TV, Laptop Screen|
|Control Way:||Touch Screen + Button Operation||Bonding Type:||Cof/Tab Bonding|
|Heating Method:||Pulse Heating LCD Bonding||Peak Power:||1500W|
optical bonding machine,
flex cable bonding machine

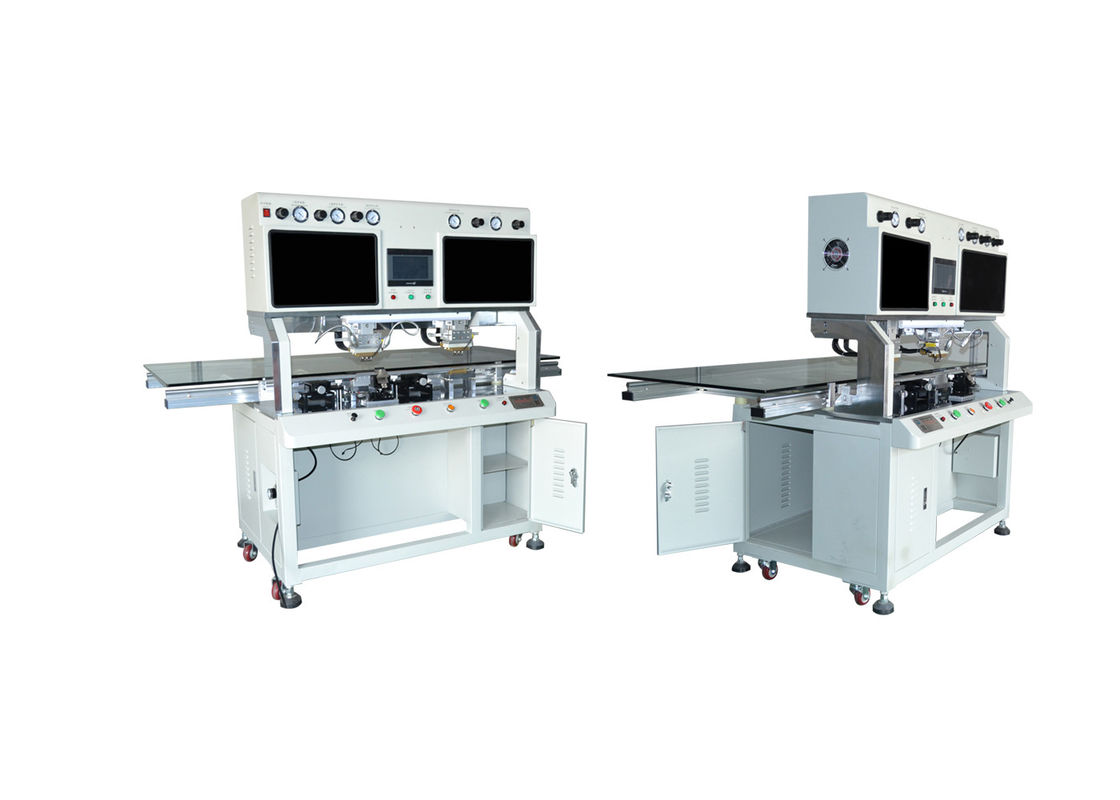

Tab Bonding Machine LCD Screen Repairing 618sh Cof Bonding Machine
The COF Bonding machine also can do COF on flex cable, COF on film bonding, and maybe IC on film bonding. Normal the COF bonding machine is Pulse heating bonding machine with Titanium alloy press bonding head. Good and complete COF bonding machine accessories are also very important for the LCD/LED/OLED.
|PID Temperature Control System Brand||Siemens temperature control module|
|Temperature curve:Factory Reset|
|Peak temperature + / - 0.3 degrees Celsius|
|From room temperature to 180 degrees response time for 2 seconds|
|Brand:the United State OMEAG|
|Heat Press Head||Materials: titanium alloy|
|Place of origin: the United States|
|Plane precision (hot-pressing side) : 0.005 mm|
|Industrial Control Unit||PLCS:DELTA|
|Imaging Unit||COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)|
|PCB counterpoint: no|
|Microscope magnification: 20 ~ 100 consecutive times|
|Number of lens: 2|
|COF counterpoint display: 19 inch|
|PCB counterpoint display:no|
|COF Trimming Unit||Place of origin: Taiwan|
|Type of guide rail:V guide rail|
|Adjustable direction: X/Y/R|
|X-y range: + / - 6.5mm|
|R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees|
|COF Fixture||Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended|
|Lens Fine-Tuning Unit||Type of guide rail: precise cross rail .|
|Control mode: X - Y - Z micrometer control|
|Silicone Skin/Teflon||Change position manually|
|LCD Drive (Platform)||Sliding or fixed optional manually|
|Heat Seal Head Counterpoint||Independent pneumatic,Pressure reducing valve be adjusted manually|
|Control Way||Touch screen + button operation|
|Parameter Setting||According to the need to set to storage more groups of hot-pressing parameters|
|Size Of Machine (mm)||1800(L)X1200(W)X1520(H)mm|
Guangzhou Chuangliyou Machinery Equipment Co., Ltd.
Guangzhou Chuang Li You Machinery Equipment Technology Co., Ltd has devoted for many years to professional design, production, sales and technical teaching in the field of machine for LCD screen repair.
As an automation equipment hightech enterprise, the company holds the development concept "quality first, independent innovation, excellent practical" since its establishment. We explore the precise, practical, convenient and quick production process, and put forward concrete solving plans about professional production equipment and the overall equipment in LCD field for customers.
Our products include a series of FOG/COF/TAB heat press machines, bonding machines, which are applied to manufacturers of LCD panel and home appliance maintenance industry. Moreover, we maintain online support forum to assist any help to customer and provide customers with accessories, consumables and one-stop service.
What's the payment and delivery time?
1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
