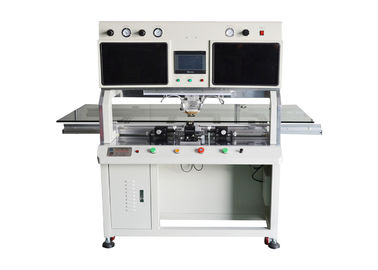

Cof Acf Bonding Equipment Double Large Screen Display For Repair LCD TV Screen

Cof Acf Bonding Equipment Double Large Screen Display For Repair LCD TV Screen
Cof Acf Bonding Equipment Double Large Screen Display For Repair LCD TV Screen

Large Image :  Cof Acf Bonding Equipment Double Large Screen Display For Repair LCD TV Screen

Product Details:

Place of Origin: China
Brand Name: CHUANGLIYOU
Certification: CE ISO
Model Number: 616dh

Payment & Shipping Terms:

Price: Negotiate
Packaging Details: Export Wooden Box Packing
Delivery Time: 3 days
Payment Terms: LC, T/T, PayPal, Western Union
Detailed Product Description
Heating Method: Pulse Heating LCD Bonding Product Name: ACF Lcd Bonding Machine
Heating Type: Pulse Control Way: Touch Screen + Button Operation
Type: Automatic Bonding Type: Cof/Tab Bonding
High Light:

display repair machine

,

screen repair machine

Acf / Cof Bonding Machine Pulse Hot Press Equipment to Repair LCD TV Screen



What LCD Panel Problems our TAB Bonding Machine can solve out? you will find answers in the below:

Screen failure: Vertical, horizontal, vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half, fault, and so on., display is not complete, low brightness, normal after a period of time display screen or white flowers, weak problems such as the equipment for repair are
available.



Features



1 - Dual HD lens + Double large screen display

HD electron microscope acquisition is clearer,Large screen displaylooks more carefully

2 - imported titanium alloy bonding head

High-tech aviation materials, fast heat conduction, uniform force, more stable hot pressing, no deformation

3 - precision micrometer TAB base

Three-axis micrometer adjustment, TAB alignment moreprecise, stainless steel seamless fixture is easier to use





Model number 616DH
Heating Mode Pulse
PID Temperature Control System Brand Siemens temperature control module
Temperature curve:Factory Reset
Peak temperature + / - 0.3 degrees Celsius
From room temperature to 180 degrees response time for 2 seconds
Brand:the United State OMEAG
Heat Press Head Materials: titanium alloy
Place of origin: the United States
Plane precision (hot-pressing side) : 0.005 mm
Industrial Control Unit PLCS:DELTA
HDMI:Weinview
Imaging Unit COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)
PCB counterpoint: no
Microscope magnification: 20 ~ 100 consecutive times
Number of lens: 2
COF counterpoint display: 19 inch
PCB counterpoint display:no
Light above:yes
Light down:no
COF Trimming Unit Place of origin: Taiwan
Type of guide rail:V guide rail
Accuracy: 0.01
Adjustable direction: X/Y/R
X-y range: + / - 6.5mm
R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees
COF Fixture Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended
Lens Fine-Tuning Unit Type of guide rail: precise cross rail .
Control mode: X - Y - Z micrometer control
Position Detection NO
Silicone Skin/Teflon Change position manually
LCD Drive (Platform) Sliding or fixed optional manually
Alarm Abnormal:temperature/thermocouple anomaly/actions
Heat Seal Head Counterpoint Independent pneumatic,Pressure reducing valve be adjusted manually
Control Way Touch screen + button operation
Parameter Setting According to the need to set to storage more groups of hot-pressing parameters
Voltage AC220 v
Peak Power 1500W
Weight 450kg
Size Of Machine (mm) 1800(L)X1200(W)X1520(H)mm





Cof Acf Bonding Equipment Double Large Screen Display For Repair LCD TV Screen 0Cof Acf Bonding Equipment Double Large Screen Display For Repair LCD TV Screen 1Cof Acf Bonding Equipment Double Large Screen Display For Repair LCD TV Screen 2


About us


Guangzhou Chuangliyou Machinery Equipment Co., Ltd.

Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is located in Dashi, Panyu District, Guangzhou City, where is a prosperous commercial city. It is located in the central area of Dashi Industry, adjacent to the most perfect LCD electronic procurement and wholesale market in China. Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is specialized in the research and development, design, production and sales of various pneumatic hot press equipment. Large-scale enterprises as a whole.





What's the payment and delivery time?


1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
