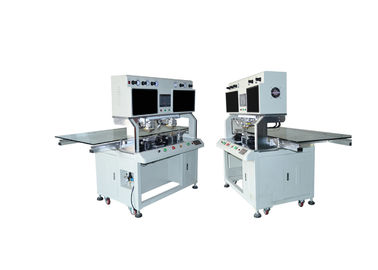

Tab Cog FPC Cof Ic Bonding Machine For LCD LED TV Panel Opencell Laptop

Tab Cog FPC Cof Ic Bonding Machine For LCD LED TV Panel Opencell Laptop
Tab Cog FPC Cof Ic Bonding Machine For LCD LED TV Panel Opencell Laptop

Large Image :  Tab Cog FPC Cof Ic Bonding Machine For LCD LED TV Panel Opencell Laptop

Product Details:

Place of Origin: China
Brand Name: CHUANGLIYOU
Certification: CE ISO
Model Number: 618SH

Payment & Shipping Terms:

Price: Negotiate
Packaging Details: Export Wooden Box Packing
Delivery Time: 3 days
Payment Terms: LC, T/T, PayPal, Western Union
Detailed Product Description
Product Name: LCD Bonding Machine Feature: Easy To Operate
Weight: 450kg Repair: LCD, LED, TV, Laptop Screen
Type: Automatic Control Way: Touch Screen + Button Operation
High Light:

bonding machine for led tv

,

lcd cof bonding machine

2020 New Model Acf / Cof Bonding Machine Pulse Hot Press Equipment to Repair LCD TV Screen

2020 New Model Acf / Cof Bonding Machine Description

This equipment is suitable for a variety of FPC / COF / TAB and LCD or PCB board combination bonding. It is a professional high precision repair equipment for reparing 2K, 4K and curved screen different sizes of LCD screen cable damage or natural fall off.

2020 New Model Acf / Cof Bonding Machine Features

1. Dual HD lens + Double large screen display
2. precise temperature control
3. multiple profiles for bonding [ 4 k, big cof, old cof etc. ]
4. Imported titanium alloy bonding head
5. compact design & easy to shift on higher floor
6. special design of dashboard & finishing quality
7. complete lcd panel training including internal panel glass faults
8. back light table include



Model number 618SH
Heating Mode Pulse
PID Temperature Control System Brand Siemens temperature control module
Temperature curve:Factory Reset
Peak temperature + / - 0.3 degrees Celsius
From room temperature to 180 degrees response time for 2 seconds
Brand:the United State OMEAG
Heat Press Head Materials: titanium alloy
Place of origin: the United States
Plane precision (hot-pressing side) : 0.005 mm
Industrial Control Unit PLCS:DELTA
HDMI:Weinview
Imaging Unit COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)
PCB counterpoint: no
Microscope magnification: 20 ~ 100 consecutive times
Number of lens: 2
COF counterpoint display: 19 inch
PCB counterpoint display:no
Light above:yes
Light down:no
COF Trimming Unit Place of origin: Taiwan
Type of guide rail:V guide rail
Accuracy: 0.01
Adjustable direction: X/Y/R
X-y range: + / - 6.5mm
R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees
COF Fixture Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended
Lens Fine-Tuning Unit Type of guide rail: precise cross rail .
Control mode: X - Y - Z micrometer control
Position Detection NO
Silicone Skin/Teflon Change position manually
LCD Drive (Platform) Sliding or fixed optional manually
Alarm Abnormal:temperature/thermocouple anomaly/actions
Heat Seal Head Counterpoint Independent pneumatic,Pressure reducing valve be adjusted manually
Control Way Touch screen + button operation
Parameter Setting According to the need to set to storage more groups of hot-pressing parameters
Voltage AC220 v
Peak Power 1500W
Weight 450kg
Size Of Machine (mm) 1800(L)X1200(W)X1520(H)mm




About us


Guangzhou Chuangliyou Machinery Equipment Co., Ltd.



Guangzhou Chuang Li You Machinery Equipment Technology Co., Ltd has devoted for many years to professional design, production, sales and technical teaching in the field of machine for LCD screen repair.
As an automation equipment hightech enterprise, the company holds the development concept "quality first, independent innovation, excellent practical" since its establishment. We explore the precise, practical, convenient and quick production process, and put forward concrete solving plans about professional production equipment and the overall equipment in LCD field for customers.
Our products include a series of FOG/COF/TAB heat press machines, bonding machines, which are applied to manufacturers of LCD panel and home appliance maintenance industry. Moreover, we maintain online support forum to assist any help to customer and provide customers with accessories, consumables and one-stop service.



What's the payment and delivery time?


1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
