618SH Acf Display Repair Machine , Lcd Cof Bonding Machine Plane Precision 0.005 Mm

China Guangzhou Chuang Li You Machinery Equipment Technology Co., Ltd certification
China Guangzhou Chuang Li You Machinery Equipment Technology Co., Ltd certification
Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Ruben Goroya

Good company with nice service and high quality and high reputation. One of our reliable supplier , goods are delivered in time and nice package.

—— Audrey Vespe

I'm Online Chat Now

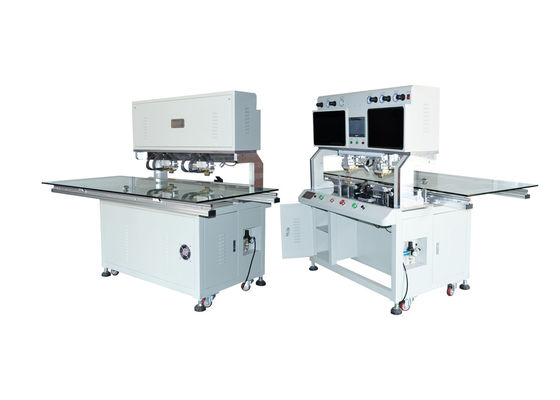

618SH Acf Display Repair Machine , Lcd Cof Bonding Machine Plane Precision 0.005 Mm

618SH Acf Display Repair Machine , Lcd Cof Bonding Machine Plane Precision 0.005 Mm
618SH Acf Display Repair Machine , Lcd Cof Bonding Machine Plane Precision 0.005 Mm

Large Image :  618SH Acf Display Repair Machine , Lcd Cof Bonding Machine Plane Precision 0.005 Mm

Product Details:

Place of Origin: China
Brand Name: CHUANGLIYOU
Certification: CE ISO
Model Number: 618SH

Payment & Shipping Terms:

Price: Negotiate
Packaging Details: Export Wooden Box Packing
Delivery Time: 3 days
Payment Terms: LC, T/T, PayPal, Western Union
Detailed Product Description
Repair: LCD, LED, TV, Laptop Screen Product Name: LCD Screen Repair Machine
Model NO: 618SH Plane Precision: 0.005 Mm
Type: Automatic Hot Pressing Time: Can Be Set (S)
Heating Method: Pulse Heating LCD Bonding Feature: High Machine Capacity
High Light:

cof ic bonding machine

,

lcd flex cable repair machine

618SH Acf Cof LCD Bonding Machine for LED LCD TV Flex Cable Repair Machine



LED TV Bonding Machine Description



The LCD Screen Repair Machine can do COF on flex cable, COF on film bonding, and maybe IC on film bonding. Normal the COF bonding machine is Pulse heating bonding machine with Titanium alloy press bonding head. Good and complete COF bonding machine accessories are also very important for the LCD/LED/OLED.



LED TV Bonding Machine Features


  • PLC control, pulse heating mode, combined with titanium alloy extrusion head, rapid heating and rapid cooling, can be set up four heating, accurate temperature control.
  • Color touch screen LCD display input, realizing the temperature curve, all the parameters set browse concise and straightforward.
  • large load platform, stepper motor drive, multiple IC can be preset position, the platform automatically move the pressure to stay.LCD bonding machine
  • under the high magnification camera system, ensure that the product clearly counterpoint.
  • powerful software, perfect the system debugging, automatically detect fault and alarm function.



Model number 618SH
Heating Mode Pulse
PID Temperature Control System Brand Siemens temperature control module
Temperature curve:Factory Reset
Peak temperature + / - 0.3 degrees Celsius
From room temperature to 180 degrees response time for 2 seconds
Brand:the United State OMEAG
Heat Press Head Materials: titanium alloy
Place of origin: the United States
Plane precision (hot-pressing side) : 0.005 mm
Industrial Control Unit PLCS:DELTA
HDMI:Weinview
Imaging Unit COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)
PCB counterpoint: no
Microscope magnification: 20 ~ 100 consecutive times
Number of lens: 2
COF counterpoint display: 19 inch
PCB counterpoint display:no
Light above:yes
Light down:no
COF Trimming Unit Place of origin: Taiwan
Type of guide rail:V guide rail
Accuracy: 0.01
Adjustable direction: X/Y/R
X-y range: + / - 6.5mm
R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees
COF Fixture Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended
Lens Fine-Tuning Unit Type of guide rail: precise cross rail .
Control mode: X - Y - Z micrometer control
Position Detection NO
Silicone Skin/Teflon Change position manually
LCD Drive (Platform) Sliding or fixed optional manually
Alarm Abnormal:temperature/thermocouple anomaly/actions
Heat Seal Head Counterpoint Independent pneumatic,Pressure reducing valve be adjusted manually
Control Way Touch screen + button operation
Parameter Setting According to the need to set to storage more groups of hot-pressing parameters
Voltage AC220 v
Peak Power 1500W
Weight 450kg
Size Of Machine (mm) 1800(L)X1200(W)X1520(H)mm



618SH Acf Display Repair Machine , Lcd Cof Bonding Machine Plane Precision 0.005 Mm 0



About us


Guangzhou Chuangliyou Machinery Equipment Co., Ltd.



Guangzhou Chuang Li You Machinery Equipment Technology Co., Ltd has devoted for many years to professional design, production, sales and technical teaching in the field of machine for LCD screen repair.

As an automation equipment hightech enterprise, the company holds the development concept "quality first, independent innovation, excellent practical" since its establishment. We explore the precise, practical, convenient and quick production process, and put forward concrete solving plans about professional production equipment and the overall equipment in LCD field for customers.

Our products include a series of FOG/COF/TAB heat press machines, bonding machines, which are applied to manufacturers of LCD panel and home appliance maintenance industry. Moreover, we maintain online support forum to assist any help to customer and provide customers with accessories, consumables and one-stop service.



What's the payment and delivery time?


1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
