Product Details:
Payment & Shipping Terms:
|
| Product Name: | LCD Laser Repair Machine | Model NO: | CLY-218 |
|---|---|---|---|
| Condition: | New | Type: | Laser Repair Machine |
| Repair: | LCD, LED, TV, Laptop Screen | Repair Type: | Color Lines And Bright Spot |
| Cooling Method: | Water-cooled/air-cooled | Laser System: | VD Control System |
| High Light: | screen laser repair machine,laser repairing machine |
||

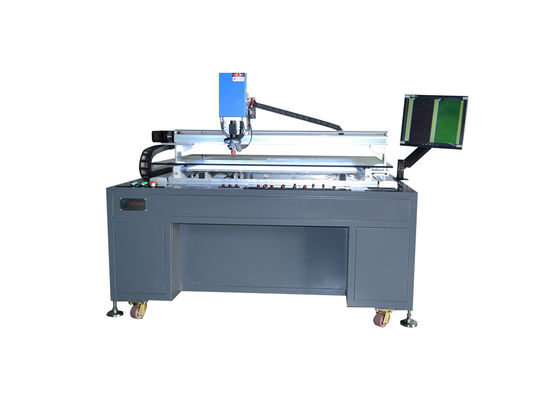

CLY-218 TV Repair Machine LCD Laser Machine for up to 65inch TV IPS LCD LED OLED Bonding Machine
Product Description
Repairing Type
Laser machine, the purpose of repair is further hope to be able to correct the defective part, make originally filtered to throw away waste products, to patch the acceptable products. At the current acceptable product standards, the first is absolutely no color line defect; Second, at present many products have highlight the "no spot guarantees", therefore cannot have a pixel is always shine bright spot, but it can be a way to accept a few dark spots. So the object of laser repairing, mainly on color line defect and bright spot.
The laser repairing ways
Welding: in a second metal overlapping across, use the appropriate energy and wavelength of laser, melt the metal parts and welding together, connecting the two electrode which was not connected (and to realize disconnection by cut off ) to realize repairing.
Equipment parameters
| Type | LCD screen Laser repairing machine |
| Power supply | voltage 220V |
| Exterior size | 2320 mm * 2160 mm * 2000 mm (the actual design shall prevail) |
| Machine weight | 1200kg |
| Working environment temperature | 20 ºC~30 ºC + / - 5 ºC |
| Work environment relative humidity | 65 + / - 5% RH |
| Laser system | VD control system |
| LASER types | ND YAG LASER |
| Wave length | 1064/532 nm double wavelength (532 nm for adjust the optical wavelength) |
| cooling method | Water-cooled/air-cooled |
| laser power | 3-8 mj/Pulse |
| Vibration frequency | 1 ~ 20 Hz/seconds |
| The maximum peak power | 1mW |
| 1064 wave amplitude | 8 ~ 6 nsec |
| Output power control | 512 steps for 0-100% Hi/Low switch - able |
| Flash Lamp Life Time | 1year or greater than 1000000 shots |
| Laser oscillator warranty period | 1 year |
| Interface | RS - 232 |
| Other name | Laser machine |
| The actual laser configuration specifications shall prevail | |
For maximum 65 inch LCD panel screen size.
Point (3 um X 3 um), line (50 um long X 3 um), block (50 um X 50 um) repair
To repair the mist of polarizing film containing the LCD panel
Dual display electronic brake light red and red box
Light gate size and the parameters of the lens ratio and laser power storage and use
Working power supply: 220 v, 30 a
Mount base confidential steel base
X, Y effective stroke 1250 mm X 900 mm
X, Y axis drive form with servo motor system confidential screw
X, Y minimum resolution of 1 um/pulse
Less than or equal to 5 um reproducibility
Z axis range of 100 mm
The Z axis driver form with servo motor system confidential screw
The Z axis minimum resolution 0.1 um/pulse
Will be subject to the actual design configuration.
Optical imaging system
Microscope: observation/laser processing and special
The CCD: 1/2 "color CCD
Fall shoot the light source, high brightness halogen light source system: (100 w)
Transmission light source, high brightness halogen light source system: (150 w)
Guide Light high brightness halogen Light source system: (100 w)
Objective switching system: 4 hole/electric switch mode (linear)
Precision optical lens group: 5x, 10x, 20x, 50x (the latter two have observed/laser processing function).
About us
Guangzhou Chuangliyou Machinery Equipment Co., Ltd.
Guangzhou Chuang Li You Machinery Equipment Technology Co., Ltd has devoted for many years to professional design, production, sales and technical teaching in the field of machine for LCD screen repair.
As an automation equipment hightech enterprise, the company holds the development concept "quality first, independent innovation, excellent practical" since its establishment. We explore the precise, practical, convenient and quick production process, and put forward concrete solving plans about professional production equipment and the overall equipment in LCD field for customers.
Our products include a series of FOG/COF/TAB heat press machines, bonding machines, which are applied to manufacturers of LCD panel and home appliance maintenance industry. Moreover, we maintain online support forum to assist any help to customer and provide customers with accessories, consumables and one-stop service.
What's the payment and delivery time?
1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
