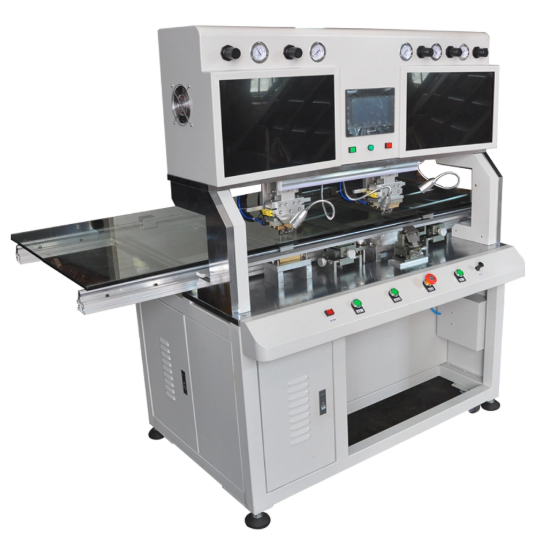

85" Flex Cable Acf TV LCD Bonding Machine Pulse Heating Mode PLC Control

85" Flex Cable Acf TV LCD Bonding Machine Pulse Heating Mode PLC Control
85" Flex Cable Acf TV LCD Bonding Machine Pulse Heating Mode PLC Control

Large Image :  85" Flex Cable Acf TV LCD Bonding Machine Pulse Heating Mode PLC Control

Product Details:

Place of Origin: China
Brand Name: CHUANGLIYOU
Model Number: 616DH

Payment & Shipping Terms:

Price: Negotiate
Packaging Details: Export Wooden Box Packing
Delivery Time: 3 days
Payment Terms: LC, T/T, PayPal, Western Union
Detailed Product Description
Heating Mode: Pulse Other Name: LCD Repair Bonding Machine
Pulse Heating Precision: +/-0.3ºC Product Name: Large Bonding Machine
Peak Temperature: + / - 0.3 Degrees Celsius Weight: 450kg
High Light:

cof bonding machine

,

heat bonding machine

616DH 85" Flex Cable Acf Bonding TV LCD Screen Repair Machine

Product Description
This equipment is suitable for a variety of FPC / COF / TAB and LCD or PCB board combination bonding. It is a professional high precision repair equipment for reparing 2K, 4K and curved screen different sizes of LCD screen cable damage or natural fall off.

What LCD Panel Problems our TAB Bonding Machine can solve out? you will find answers in the below:
Screen failure: Vertical, horizontal, vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half, fault, and so on., display is not complete, low brightness, normal after a period of time display screen or white flowers, weak problems such as the equipment for repair are
available.



Application
1. It can refurbish vertical, horizontal, vertical, horizontal, black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, horizontal, vertical half and half, fault, and so on,caused by FPC/TAB/COF.
2. Suitable for TFT panel and TAB, FPC and LCD or PCB board combination bonding


Features
1. Repair any inches below 100 inches.
2. Refurbish black belt, the black line, the color line, ribbons, multi-line, flower screen, black screen, white show, caused by FPC/TAB/COF.
3. Pulse heating precision+/-0.3ºC
4. From room te
mperature to 180 degrees response time for 2 seconds
5. Plane precision (hot-pressing side) : 0.005 mm
6. high repair rate, and easy to operate.



Model number616DH
Heating ModePulse
PID Temperature Control System BrandSiemens temperature control module
Temperature curve:Factory Reset
Peak temperature + / - 0.3 degrees Celsius
From room temperature to 180 degrees response time for 2 seconds
Brand:the United State OMEAG
Heat Press HeadMaterials: titanium alloy
Place of origin: the United States
Plane precision (hot-pressing side) : 0.005 mm
Industrial Control UnitPLCS:DELTA
HDMI:Weinview
Imaging UnitCOF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)
PCB counterpoint: no
Microscope magnification: 20 ~ 100 consecutive times
Number of lens: 2
COF counterpoint display: 19 inch
PCB counterpoint display:no
Light above:yes
Light down:no
COF Trimming UnitPlace of origin: Taiwan
Type of guide rail:V guide rail
Accuracy: 0.01
Adjustable direction: X/Y/R
X-y range: + / - 6.5mm
R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees
COF FixtureMechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended
Lens Fine-Tuning UnitType of guide rail: precise cross rail .
Control mode: X - Y - Z micrometer control
Position DetectionNO
Silicone Skin/TeflonChange position manually
LCD Drive (Platform)Sliding or fixed optional manually
AlarmAbnormal:temperature/thermocouple anomaly/actions
Heat Seal Head CounterpointIndependent pneumatic,Pressure reducing valve be adjusted manually
Control WayTouch screen + button operation
Parameter SettingAccording to the need to set to storage more groups of hot-pressing parameters
VoltageAC220 v
Peak Power1200W
Weight450kg
Size Of Machine (mm)1200(L)X1200(W)X1520(H)mm



85" Flex Cable Acf TV LCD Bonding Machine Pulse Heating Mode PLC Control 0
About us
Guangzhou Chuangliyou Machinery Equipment Co., Ltd.
Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is located in Dashi, Panyu District, Guangzhou City, where is a prosperous commercial city. It is located in the central area of Dashi Industry, adjacent to the most perfect LCD electronic procurement and wholesale market in China. Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is specialized in the research and development, design, production and sales of various pneumatic hot press equipment. Large-scale enterprises as a whole.


What's the payment and delivery time?
1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
