Payment & Shipping Terms:
|Product Name:||Acf / Cof Bonding Machine||Type:||Automatic|
|Repair:||LCD, LED, TV, Laptop Screen||Feature:||Easy To Operate|
|Weight:||450kg||Control Way:||Touch Screen + Button Operation|
display repair machine,
screen repair machine

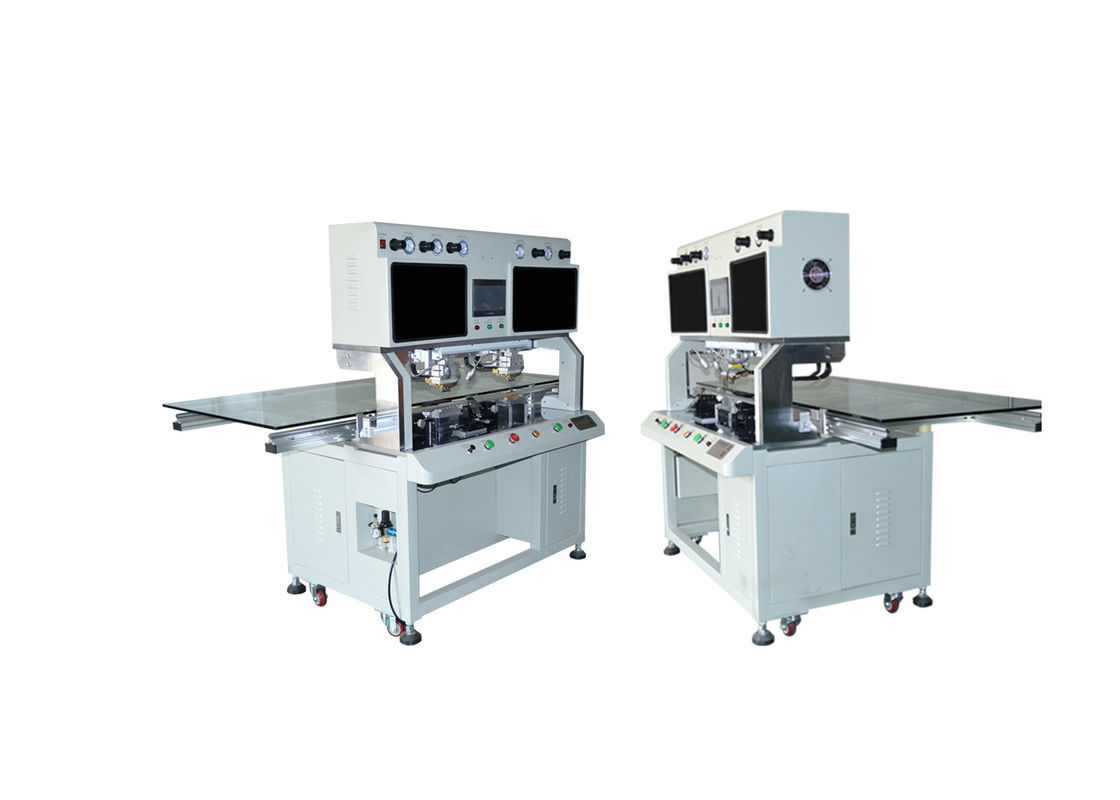

2020 New Model Acf / Cof Bonding Machine Pulse Hot Press Equipment to Repair LCD TV Screen
2020 New Model Acf / Cof Bonding Machine Description
This equipment is suitable for a variety of FPC / COF / TAB and LCD or PCB board combination bonding. It is a professional high precision repair equipment for reparing 2K, 4K and curved screen different sizes of LCD screen cable damage or natural fall off.
2020 New Model Acf / Cof Bonding Machine Features
1. strong head alignment unit
2. precise temperature control
3. multiple profiles for bonding [ 4 k, big cof, old cof etc. ]
4. x , y & z direction movement of microscope
5. 100% made in india with long life
6. special design of dashboard & finishing quality
7. complete lcd panel training including internal panel glass faults
8. back light table include
9. compact design & easy to shift on higher floor
|PID Temperature Control System Brand||Siemens temperature control module|
|Temperature curve:Factory Reset|
|Peak temperature + / - 0.3 degrees Celsius|
|From room temperature to 180 degrees response time for 2 seconds|
|Brand:the United State OMEAG|
|Heat Press Head||Materials: titanium alloy|
|Place of origin: the United States|
|Plane precision (hot-pressing side) : 0.005 mm|
|Industrial Control Unit||PLCS:DELTA|
|Imaging Unit||COF counterpoint: under counterpoint (optical path: lens>quartz>ITO electrode COF package)|
|PCB counterpoint: no|
|Microscope magnification: 20 ~ 100 consecutive times|
|Number of lens: 2|
|COF counterpoint display: 19 inch|
|PCB counterpoint display:no|
|COF Trimming Unit||Place of origin: Taiwan|
|Type of guide rail:V guide rail|
|Adjustable direction: X/Y/R|
|X-y range: + / - 6.5mm|
|R range:coarse adjustment 360 degrees, fine adjustment + / - 5 degrees|
|COF Fixture||Mechanical clamping fixture way,Z to tilt radius can be adjusted/ Adjustable horizontal angel/COF can be extended|
|Lens Fine-Tuning Unit||Type of guide rail: precise cross rail .|
|Control mode: X - Y - Z micrometer control|
|Silicone Skin/Teflon||Change position manually|
|LCD Drive (Platform)||Sliding or fixed optional manually|
|Heat Seal Head Counterpoint||Independent pneumatic,Pressure reducing valve be adjusted manually|
|Control Way||Touch screen + button operation|
|Parameter Setting||According to the need to set to storage more groups of hot-pressing parameters|
|Size Of Machine (mm)||1800(L)X1200(W)X1520(H)mm|
Guangzhou Chuangliyou Machinery Equipment Co., Ltd.
Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is located in Dashi, Panyu District, Guangzhou City, where is a prosperous commercial city. It is located in the central area of Dashi Industry, adjacent to the most perfect LCD electronic procurement and wholesale market in China. Guangzhou Chuangliyou Machinery Equipment Co., Ltd. is specialized in the research and development, design, production and sales of various pneumatic hot press equipment. Large-scale enterprises as a whole.
What's the payment and delivery time?
1. Payment: Terms EXW/FOB/CIF, by T/T, 100% deposit in advance (Recommend), Or 50% deposit and 50% paid before delivery
2. Delivery time: About one week.
3. How about the warranty?
Usually we provide 1 year standard warranty and whole life technical support.
4. How about the training?
We provide two training method: factory training and video training.
5. How you packing the machine when shipping?
LCD TV Repair Bonding Machine Package
6. How can I install the machine after I received?
Here is a video of 616DH disassembly procedure. You can refer to it and do the opposite procedure.
Contact Person: Lee
